All-in-One

Integrated. Reliable. Smart. — Complete Home Energy Storage in One Unit.

5kWh · 10kWh · 16kWh 6,000+ Cycles

5-Year Warranty

Get a Quote Request Customization

Premium A-Grade Cells

EVE, CATL, GOTION with 6,000+ cycles

Broad Compatibility

Works with 99% of leading hybrid inverters

Parallel Expansion

Up to 64 units in parallel

Safety Certified

UL9540 UL1973 certified

Multiple Protection

Smart BMS Protection

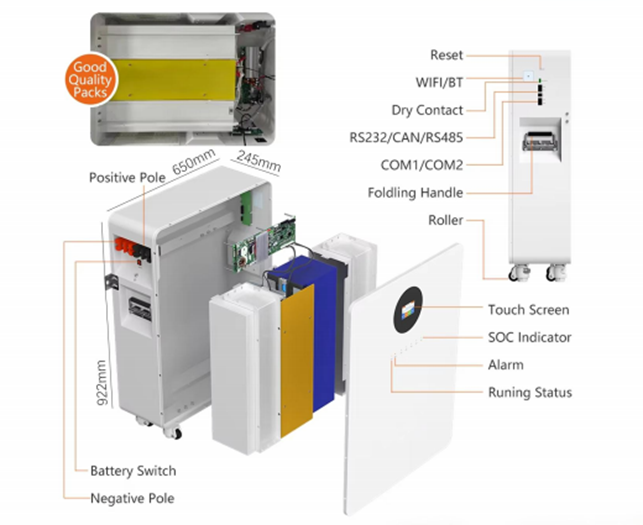

All-in-one integrated design combining battery pack, BMS, and intelligent control in a single floor-standing unit
Residential-focused solution with flexible capacity options from 5kWh to 16kWh
Premium A-grade cells (EVE, CATL, GOTION) delivering 6,000+ cycles with a 5-year warranty
Advanced LiFePO₄ battery technology with 18-layer intelligent BMS safety monitoring, fire protection, and fault alerts for safe and stable daily operation
Broad compatibility with 99% of hybrid inverter brands, supporting up to 64 units in parallel, UL9540 & UL1973 certified

Technical Specifications

Model Number	Xin-01	Xin-01	Xin-01
Nominal Energy (kWh)	5kWh	10kWh	16kWh
Product Type	Floor-Mounted Lithium Battery
Cell Chemistry – Battery Type	LiFePO4
Module Configuration	16S1P
Nominal Capacity (Ah)	100	200	314
Nominal Voltage (Vdc)	51.2
Operating Voltage Range (Vdc)	44.8~57.6
Max. Continuous Charge Current (A)	50	100	150
Max. Continuous Discharge Current (A)	100	200	300
Communication Interface	CAN/RS485/RS232
Ingress Protection Rating	IP54 (optional)
Cooling Type	Natural Air Cooling
Cycle Life	≥6,000 cycles @25℃	≥8,000 cycles @25℃	≥8,000 cycles @25℃
Display Panel	LCD
Protection Functions	Comprehensive BMS protection includes cell/pack over & under-voltage, charge/discharge over current, short-circuit, low-temp charge & high-temp discharge safeguards, plus cell balancing, temperature monitoring, and fault alarming.

Tailor-Made for Your Needs

Customize your stackable battery to your exact project requirements — from dimensions to performance parameters.>

Size
Outline
Surface
LOGO
Current
Mounting
Voltage
Heat Dissipation
Capacity
Materials

All-in-One System

(Grid-connected + Backup)

A fully integrated home energy solution combining battery, BMS, and intelligent controls in one floor-standing unit — delivering daily savings and reliable backup protection.

Solar energy powers home loads first; surplus is stored for peak-hour use. When solar is insufficient, stored energy automatically maintains household power. During grid outages, the system seamlessly transitions to backup mode, keeping essential appliances running.Its integrated floor-standing design offers a streamlined installation with no additional components, making it an efficient and future-ready choice for homes seeking complete energy independence.
