The Wall-Mounted Lithium Battery Series is designed to deliver reliable and efficient energy storage for residential applications. Equipped with advanced LiFePO4 technology and a comprehensive BMS protection system, it ensures safe and stable performance for independent energy systems. With capacities ranging from 5kWh to 16kWh, the series offers flexible options to meet diverse household energy needs. The intelligent BMS supports 18-layer safety monitoring, fire protection, and fault alerts, while the user-friendly display panel allows for real-time monitoring and easy operation. Featuring A-grade battery cells (EVE, CATL, GOTION, etc.) with over 6,000 cycles and a 5-year warranty, it maximizes energy utilization for various residential applications. Additionally, the system has passed voltage and temperature monitoring certifications including UL9540 and UL1973, making it a practical and reliable choice for home energy storage solutions.

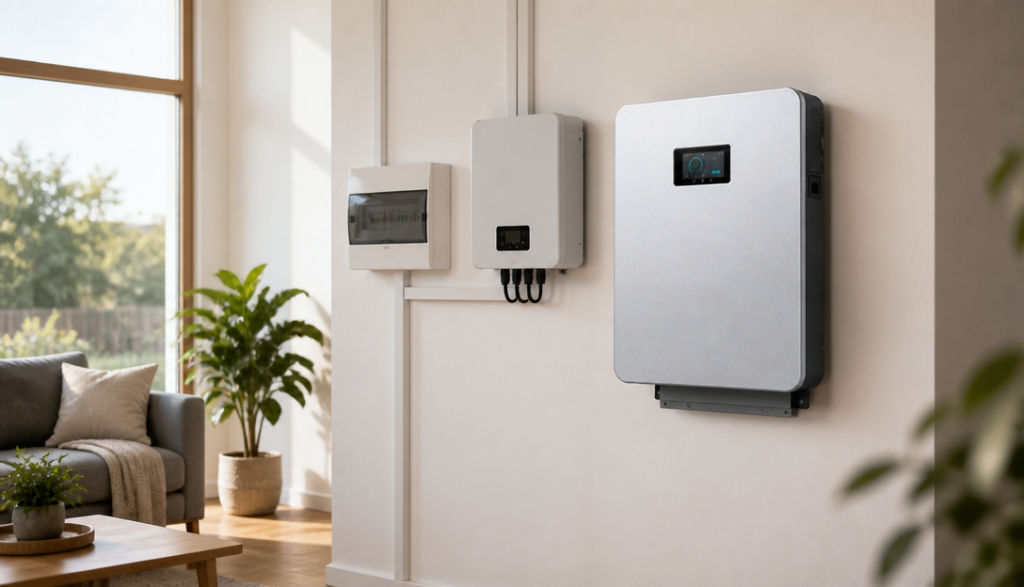

Why Wall-Mounted Battery

Engineered for performance, safety, and flexibility

Premium A-Grade Cells

EVE, CATL, GOTION with 6,000+ cycles

Smart EMS Protection

18-layer safety, fire monitoring & fault alerts

Real-Time Monitoring

User-friendly display for easy operation

Parallel Expansion

Up to 64 units in parallel

Broad Compatibility

Seamless integration with various devices

Safety Certified

UL9540 & UL1973 certified

Technical Specifications

Three capacity options to fit your home energy needs.

Model / Energy : Jiu-01 / 02 / 03 · 5 / 10 / 16 kWh	Charge / Discharge Current : 100/200/150 A · 100/200/300 A
Type / Chemistry / Config : Wall-Mounted · LiFePO4 · 16S1P	Comm / IP : CAN / RS485 / RS232 · IP54 (opt.)
Capacity / Voltage : 100 / 200 / 314 Ah · 51.2 Vdc	Cooling / Display : Natural Air · LCD
Voltage Range : 44.8 ~ 57.6 Vdc	Cycle Life : ≥6,000 / ≥8,000 / ≥8,000 @25°C

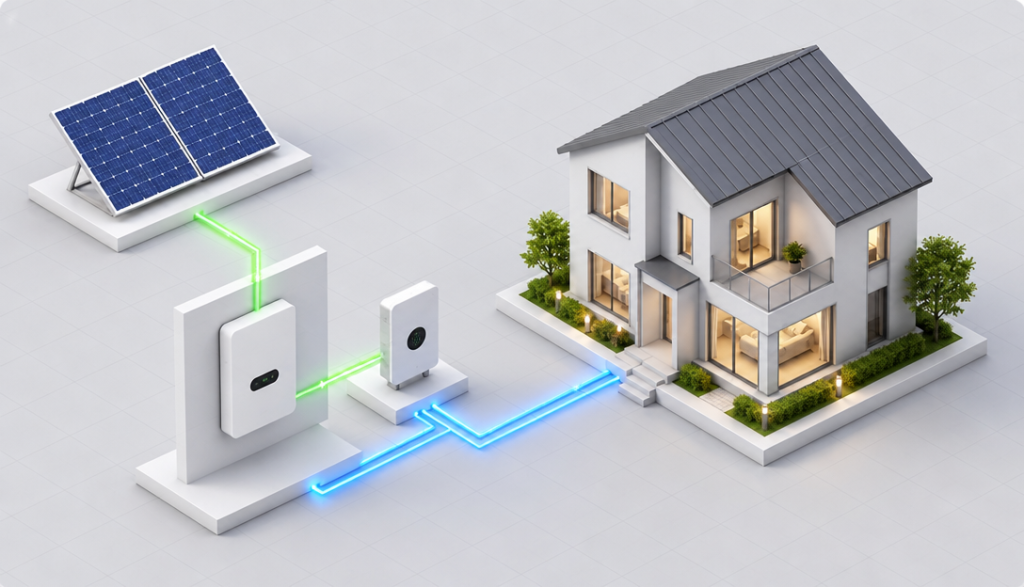

Wall-Mounted System

(Backup + PV)

Ideal for residential backup and solar self-consumption. The system works in four steps:

Solar first — PV energy powers home loads directly
Surplus storage — excess solar charges the wall-mounted battery
Night & cloudy cover — battery seamlessly discharges when solar is insufficient
Instant backup — during grid outages, it provides immediate power to keep essential appliances running

Space-saving wall-mounted design with flexible capacity makes it a practical solution for energy independence.

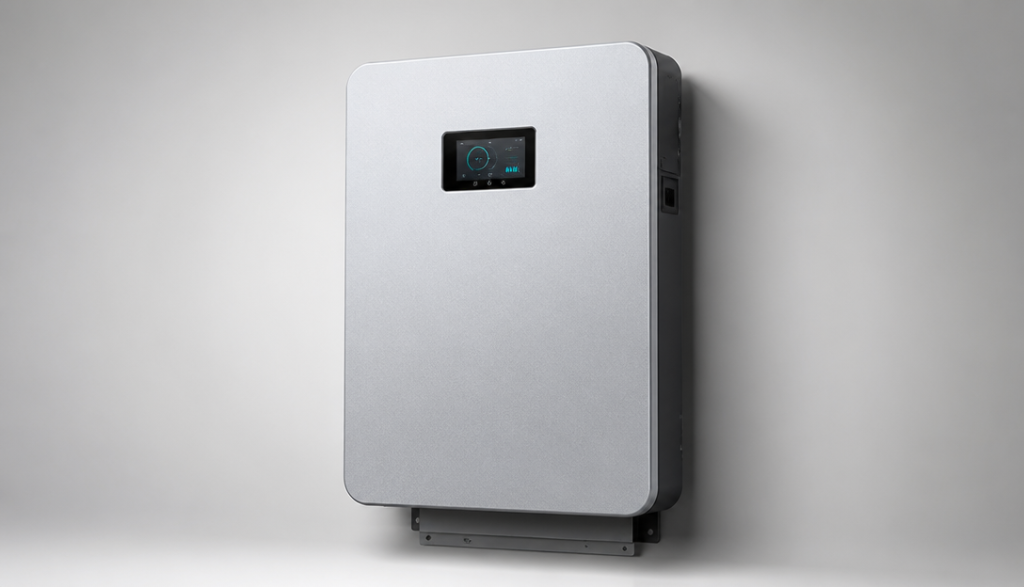

Wall-Mounted Lithium Battery
