Stackable Lithium Battery

Modular. Scalable. Smart. — Energy Storage That Grows with Your Needs.

10.24-30.72kWh    6,000+ Cycles

5-Year Warranty

Stackable models: Classic Stackable Battery · Stackable Round Display · Stackable Smart

Stackable Lithium Battery
RUIDASIMAI home battery feature icon

Up to 64 units in parallel

True stackable - no extra wiring
RUIDASIMAI home battery feature icon

UL9540 & UL1973 certified

Safety & reliability guaranteed
RUIDASIMAI solar charging feature icon

Flexible capacity

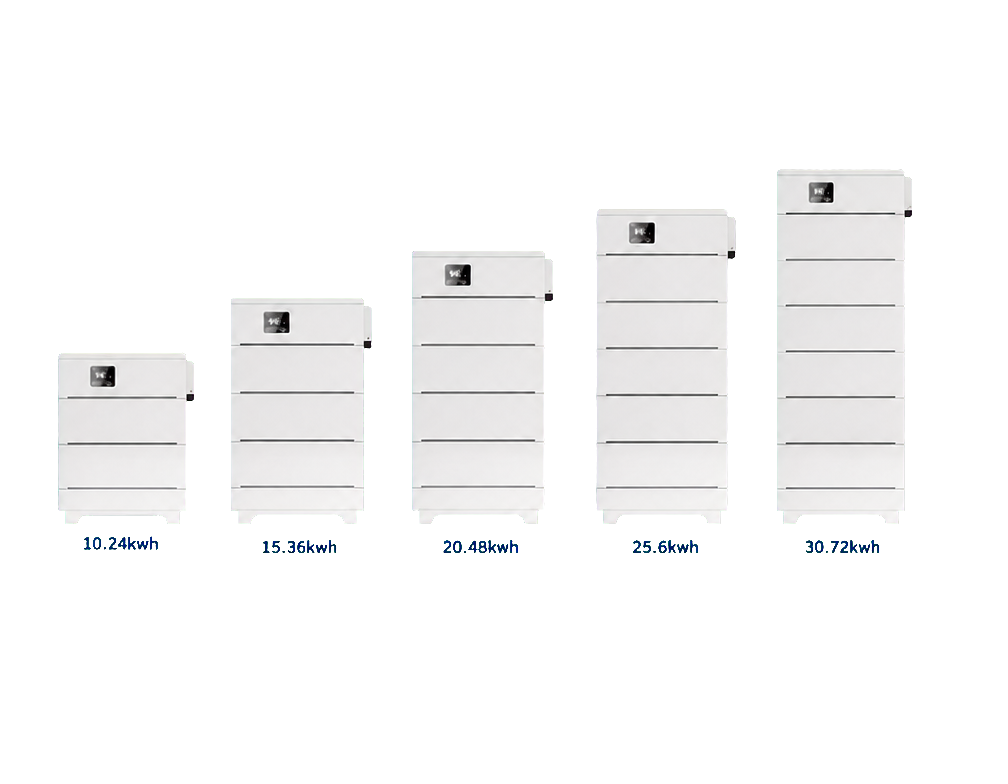

10.24kWh to 30.72kWh
RUIDASIMAI battery module feature icon

Grade A LiFePO4 cells

EVE · CATL · Gotion
RUIDASIMAI safety and protection feature icon

Smart EMS Protection

18-layer safety & fault warning
The Stackable Lithium Battery Series features a modular design with flexible capacity options from 10.24kWh to 30.72kWh. Equipped with advanced LiFePO₄ technology and a comprehensive BMS protection system, it ensures safe, stable, and efficient energy storage for residential applications.

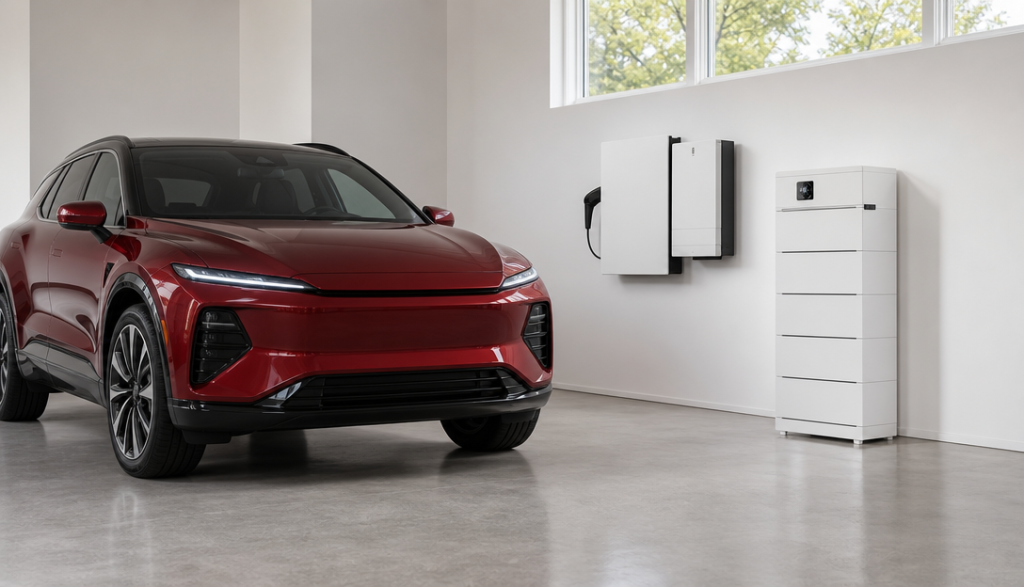

Stackable home battery charging an electric vehicle at home

Why Stackable?

The Stackable Lithium Battery Series is designed for homeowners who want flexibility. Unlike fixed-capacity systems, our stackable solution allows you to start with the energy you need today and expand effortlessly as your household grows. Whether you're adding more solar panels, purchasing an electric vehicle, or simply want greater energy independence, the stackable design ensures your storage capacity can keep pace — without replacing the entire system. Add modules one at a time, up to 64 units in parallel, scaling from 10.24kWh to 30.72kWh or beyond.

Technical Specifications

Model / Energy : Stacking-01/02/03 · 5 / 10 / 16 kWh Charge / Discharge Current : 50/100/150 A · 100/200/300 A
Type / Chemistry / Config : Stackable · LiFePO4 · 16S1P Comm / IP : CAN / RS485 / RS232 · IP54 (opt.)
Capacity / Voltage : 100 / 200 / 314 Ah · 51.2 Vdc Cooling / Display : Natural Air · LCD
Voltage Range : 44.8 ~ 57.6 Vdc Cycle Life : ≥6,000 / ≥8,000 / ≥8,000 @25°C
BMS Protection : cell/pack over & under-voltage, charge/discharge over-current, short-circuit, low-temp charge & high-temp discharge safeguards, cell balancing, temp monitoring, fault alarming Expandable configurations : 2 modules → 10.24 kWh · 3 → 15.36 · 4 → 20.48 · 5 → 25.6 · 6 → 30.72 kWh

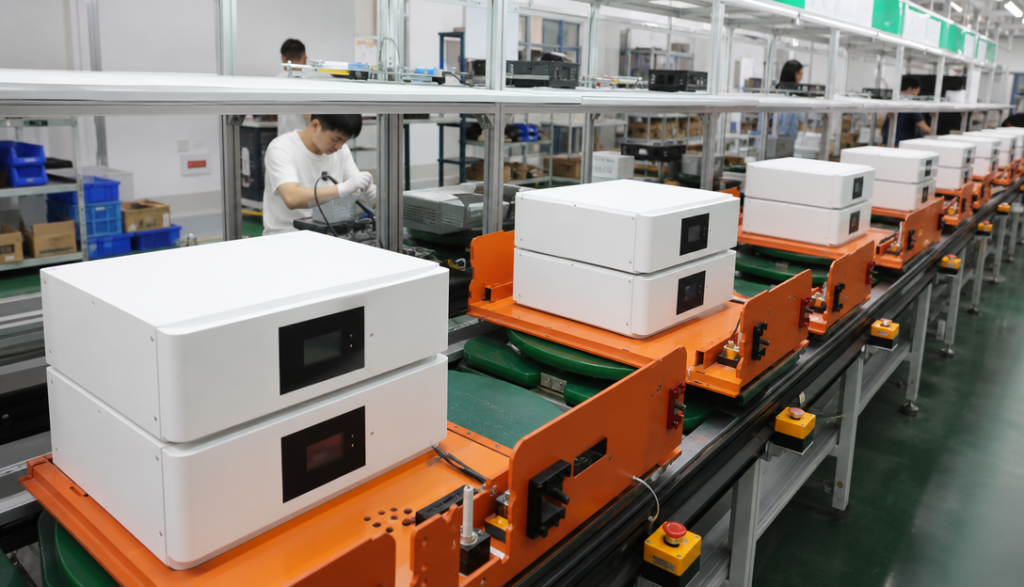

Stackable home battery modules on the RUIDASIMAI assembly line

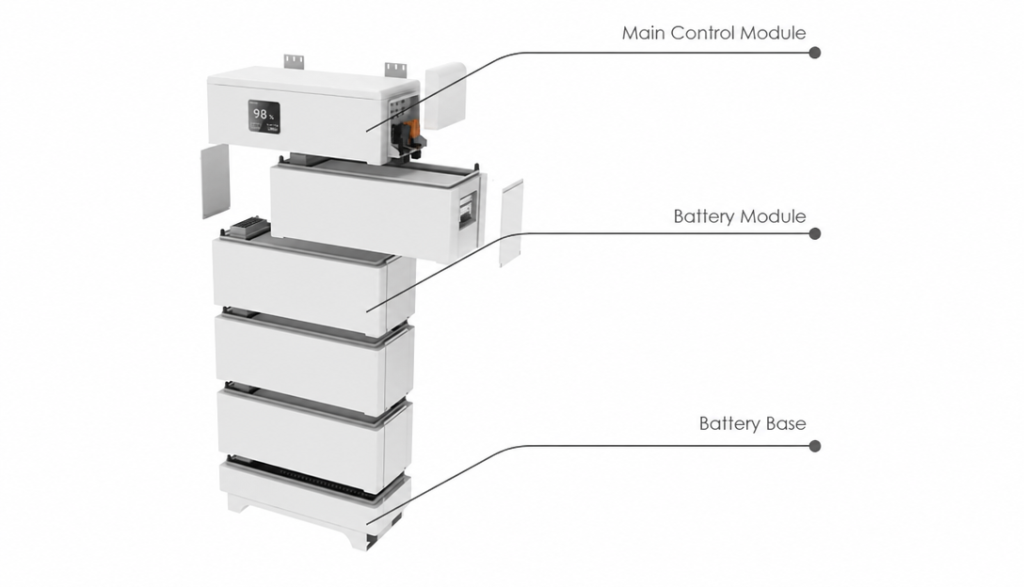

RUIDASIMAI stackable home battery system product render

Tailor-Made for Your Needs

Customize your stackable battery to your exact project requirements — from dimensions to performance parameters.
Size Outline Surface LOGO Current Mounting Voltage Heat Dissipation Capacity Materials

Stackable System

(Backup + PV)

Ideal for residential backup and solar self-consumption. Solar energy powers home loads first; surplus charges the battery. When solar is insufficient, the battery seamlessly discharges to cover needs. During grid outages, it provides instant backup, keeping essential appliances running. True stackable design with flexible capacity — start small, expand as you grow — makes it a practical solution for energy

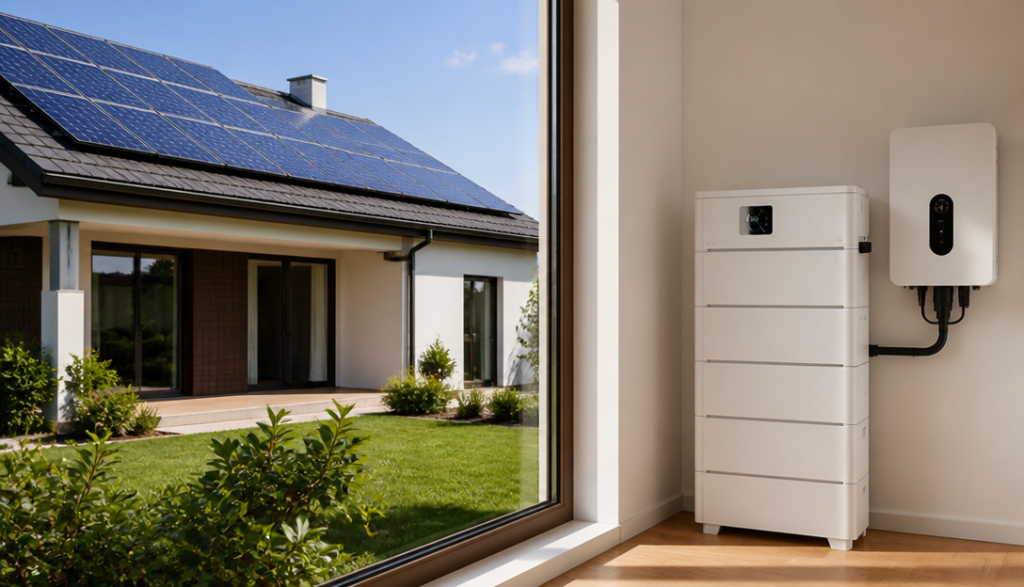

Stackable home battery system installed in a family home

PRODUCT CASE

Power Backup
On The Road
Cost Saving

Get in Touch Today

We are committed to delivering prompt, dependable, and professional services tailored to your needs.
