Floor-Mounted Lithium Battery

Integrated. Reliable. Smart. — a floor-mounted home battery, one unit.

5 kWh · 10 kWh · 16 kWh LiFePO4 · 6,000+ cycles · 5-year warranty.

Floor-standing keeps cells cool and stable. UL9540 and UL1973.

Floor-Mounted models: Floor-Mounted All-In-One · Floor-Mounted Rack-Mount · Floor-Mounted Rugged Home

Floor-Mounted Lithium Battery
RUIDASIMAI battery module feature icon

Premium A-Grade Cells

EVE, CATL, GOTION with 6,000+ cycles
RUIDASIMAI home battery feature icon

Broad Compatibility

Works with 99% of leading hybrid inverters
RUIDASIMAI home battery feature icon

Parallel Expansion

Up to 64 units in parallel
RUIDASIMAI solar charging feature icon

Safety Certified

UL9540 UL1973 certified
RUIDASIMAI safety and protection feature icon

Multiple Protection

Smart BMS Protection
  • Floor-mounted integrated design combining battery pack, BMS, and intelligent control in a single floor-standing unit
  • Residential-focused solution with flexible capacity options from 5kWh to 16kWh
  • Premium A-grade cells (EVE, CATL, GOTION) delivering 6,000+ cycles with a 5-year warranty
  • Advanced LiFePO₄ battery technology with 18-layer intelligent BMS safety monitoring, fire protection, and fault alerts for safe and stable daily operation
  • Broad compatibility with 99% of hybrid inverter brands, supporting up to 64 units in parallel, UL9540 & UL1973 certified

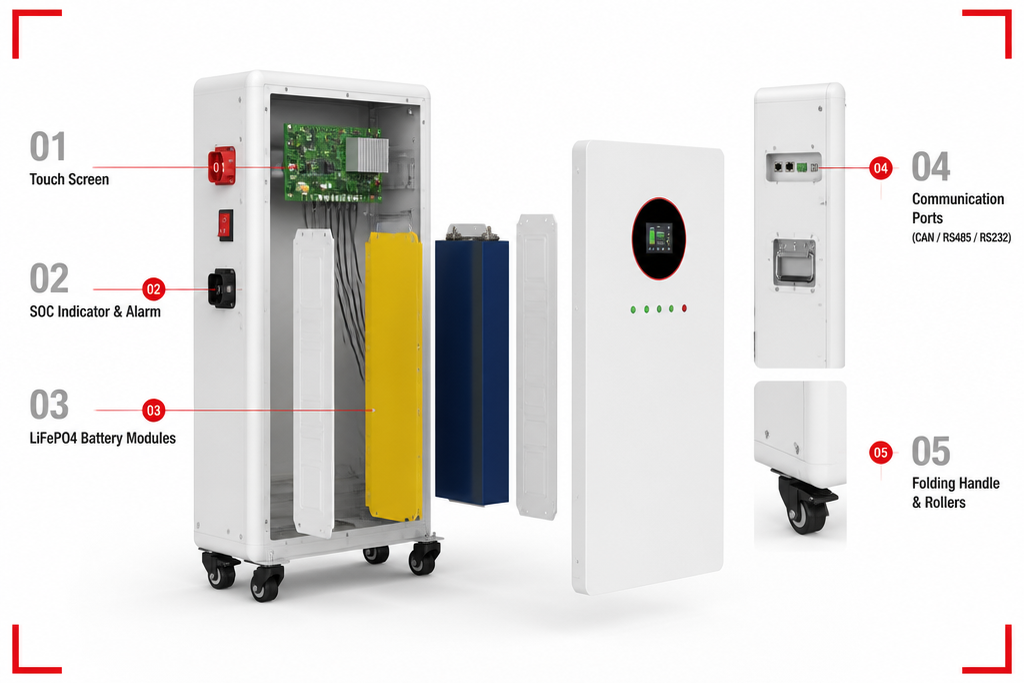

  Exploded view of the floor-mounted home battery showing internal modules

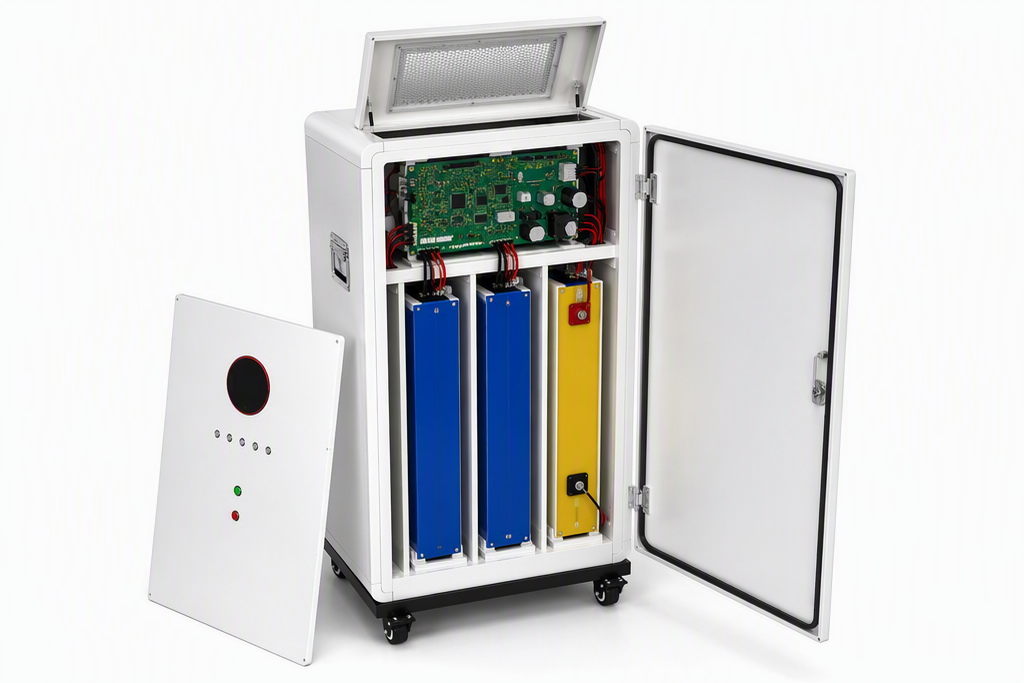

Floor-mounted home battery with open door showing battery modules

Technical Specifications

Model Number : Xin-01 Max. Charge Current : 50 / 100 / 150 A
Nominal Energy : 5 / 10 / 16 kWh Max. Discharge Current : 100 / 200 / 300 A
Product Type : Floor-Mounted Lithium Battery Communication Interface : CAN / RS485 / RS232
Cell Chemistry : LiFePO4 Ingress Protection : IP54 (optional)
Module Configuration : 16S1P Cooling Type : Natural Air Cooling
Nominal Capacity : 100 / 200 / 314 Ah Cycle Life : ≥6,000 / ≥8,000 / ≥8,000 @25°C
Nominal Voltage : 51.2 Vdc Display Panel : LCD
Operating Voltage Range : 44.8 ~ 57.6 Vdc Protection : cell/pack over & under-voltage, charge/discharge over-current, short-circuit, low-temp charge & high-temp discharge safeguards, cell balancing, temperature monitoring, fault alarming

Tailor-Made for Your Needs

Customize your Floor-mounted battery to your exact project requirements — from dimensions to performance parameters.>
Size Outline Surface LOGO Current Mounting Voltage Heat Dissipation Capacity Materials

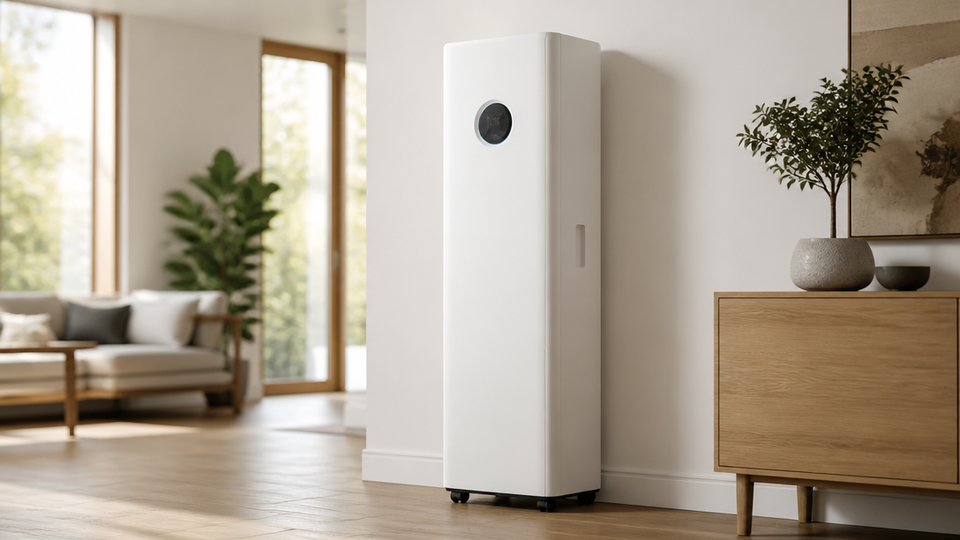

Customized integrated floor-mounted home battery system

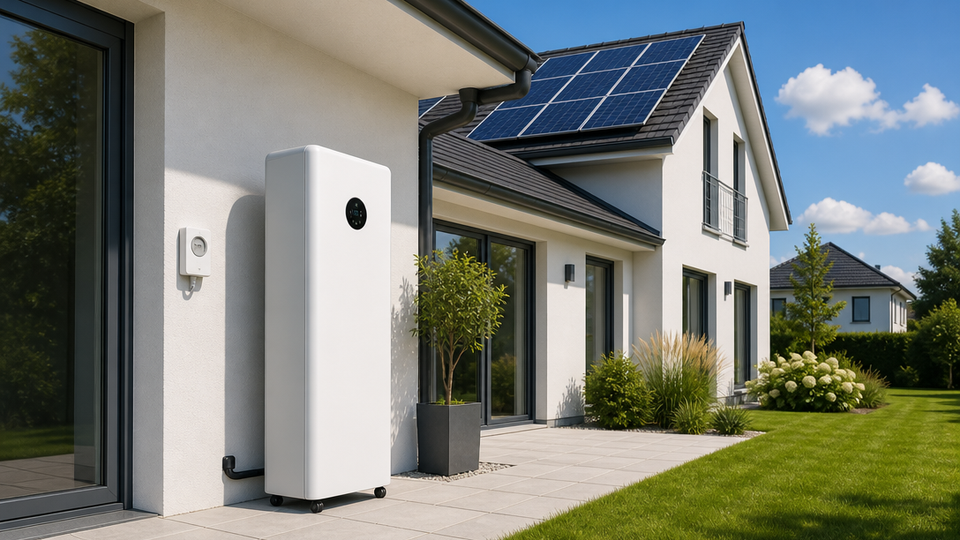

Integrated floor-mounted home battery system

Floor-Mounted System

(Grid-connected + Backup)

A fully integrated home energy solution combining battery, BMS, and intelligent controls in one floor-standing unit — delivering daily savings and reliable backup protection. Solar energy powers home loads first; surplus is stored for peak-hour use. When solar is insufficient, stored energy automatically maintains household power. During grid outages, the system seamlessly transitions to backup mode, keeping essential appliances running.Its integrated floor-standing design offers a streamlined installation with no additional components, making it an efficient and future-ready choice for homes seeking complete energy independence.

PRODUCT CASE

Power Backup
On The Road
Cost Saving
