All-in-One Floor-Standing Battery

Integrated. Reliable. Smart. — Complete Home Energy Storage in One Unit.

5kWh · 10kWh · 16kWh    6,000 / 8,000 cycles by capacity

5-Year Warranty

FLOOR-MOUNTED / ALL-IN-ONE

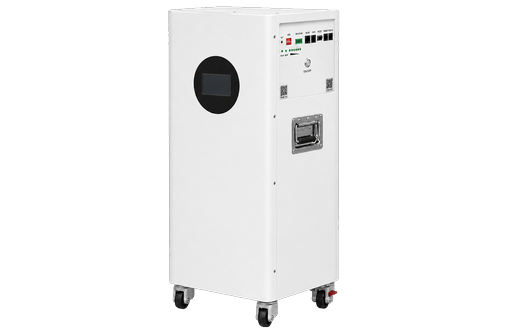

All-in-One Floor-Standing Battery

A floor-mounted all-in-one battery gathers the whole home energy cabinet into a single white unit, and this one combines a 5–16 kWh LiFePO4 pack, an integrated LCD panel and CAN, RS485 and RS232 communication behind one powder-coated steel shell.

Floor-Mounted All-in-One Battery Overview

A floor-mounted all-in-one battery is the simplest way to give a home a complete storage unit, and it is the reference point in most comparisons of home energy storage. Because the cabinet holds the cells, the BMS and the display in one shell, a single all-in-one energy storage unit rolls into place on four caster wheels with a brake pedal. As a result, this home battery cabinet suits households that want tidy, ready-to-use storage rather than loose equipment.

Technical Specifications

Parameter Value
Nominal Energy 5 kWh / 10 kWh / 16 kWh (customizable)
Nominal Capacity 100 Ah / 200 Ah / 314 Ah
Nominal Voltage 51.2 Vdc
Operating Voltage Range 44.8 – 57.6 Vdc
Cell Configuration 16S1P, LiFePO4 (Grade A: EVE / CATL / GOTION)
Max. Continuous Charge Current 50 A (5 kWh) / 100 A (10 kWh) / 150 A (16 kWh)
Max. Continuous Discharge Current 100 A (5 kWh) / 200 A (10 kWh) / 300 A (16 kWh)
Cycle Life ≥ 6,000 (5 kWh) / ≥ 8,000 (10 & 16 kWh) @ 25°C
Communication CAN / RS485 / RS232 (parallel link, PCS comms, dry contact)
Display LCD + SOC / status indicators
Protection IP54 (optional)
Cooling Natural air cooling
Parallel Expansion Up to 64 units
Certifications UL9540 & UL1973
Warranty > 5 years

In practice, these figures describe a standard floor-mounted all-in-one battery, so we can re-specify the display, the current rating and the enclosure for your market.

Frequently Asked Questions

What does all-in-one mean on this model?

The battery pack, an integrated LCD panel and the CAN, RS485 and RS232 communication interfaces are housed in one powder-coated steel enclosure, so there is no separate control cabinet to mount.

How much capacity does one unit provide?

Up to 16 kWh per unit, with 5 kWh and 10 kWh configurations also available.

Why choose floor-mounted rather than wall-mounted?

A freestanding enclosure carries heavier modules than a wall fixing can, and it removes any question about the wall’s load-bearing capacity.

What cells are used?

Grade A LiFePO4 prismatic cells — EVE, CATL or GOTION — in a 16S1P configuration.

Can several units be combined?

Yes, up to 64 units in parallel.

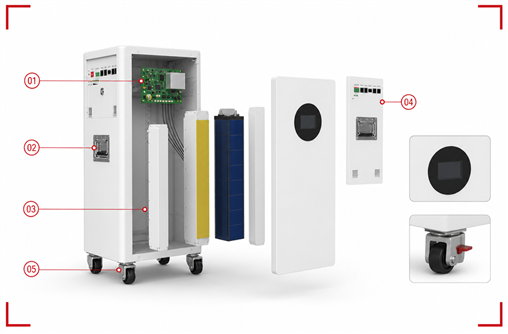

Why Choose a Floor-Mounted All-in-One Battery?

Ten design decisions define this unit, and each one changes how the floor-mounted all-in-one battery behaves in a real home. If you already know a modular format, the difference lies in how much arrives pre-assembled.

  • Clean home-friendly design — white matte cabinet, compact footprint, integrated circular display panel
  • Easy to move — four caster wheels with red brake pedal, recessed stainless-steel handle
  • Full communication — RS485 / CAN / RS232 plus RJ45 Ethernet, DIP switch addressing, ON/OFF button, status LEDs
  • Grade A LiFePO4 cells — EVE / CATL / GOTION, 16S1P, 6,000–8,000 cycles @ 25°C
  • Smart BMS with 18-layer protection — over/under voltage, overcurrent, short circuit, temperature protection, cell balancing, fire-safety monitoring and fault alarms
  • Up to 64 units in parallel — grow from 5 kWh to whole-home capacity
  • 99% inverter compatibility — works with virtually all hybrid inverter brands
  • UL9540 & UL1973 certified — IP54 (optional), natural air cooling
  • >5-year warranty

This unit is the most customizable member of the floor-mounted family. However, we work primarily as an OEM/ODM partner, so the specification starts with your brand and market rather than with our catalogue. Therefore, tell us the target voltage, capacity and enclosure, and we build the floor-mounted all-in-one battery around them.

  • Capacity & voltage — full-gradient capacity customization, non-standard voltages supported
  • Size & outline — any size to suit your capacity; right-angle or arc-corner shapes; single/multi-layer stacking
  • Current rating — continuous and peak current customized on demand
  • Mounting structures — wall brackets, floor foot pads, lifting lugs, stacking buckles or slides
  • Heat dissipation — side cooling ribs, louver vents, top fan openings or rear vents
  • Materials — cold-rolled steel, 304 stainless steel or aluminum alloy
  • Surface treatment — brushed, anodizing or full-color powder coating (custom RAL colors available)
  • Branding — custom logos, QR codes and panel layouts
Built to Your Specification

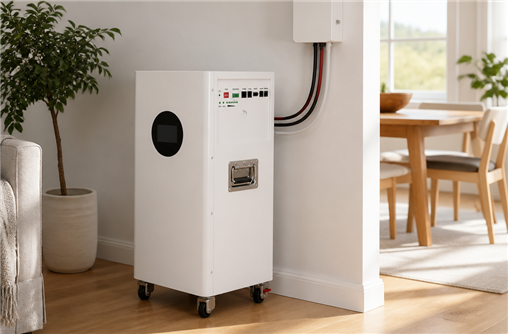

Where a Floor-Mounted All-in-One Battery Fits

Because the cabinet is self-contained, the same floor-mounted all-in-one battery covers several household profiles. Typically, you will find it in five settings.

  • Home solar self-consumption and backup, especially where you already store daytime generation
  • Peak shaving and load shifting, so the cabinet serves evening demand instead of the grid
  • Apartments and villas, where a tidy home battery cabinet is easier to place
  • Home workshops and outbuildings, where tools and lighting need a steady supply
  • Rural homes with unstable grids
