Rack-Mount Modular Battery

Integrated. Reliable. Smart. — Complete Home Energy Storage in One Unit.

5kWh · 10kWh · 16kWh    6,000 / 8,000 cycles by capacity

5-Year Warranty

FLOOR-MOUNTED / RACK-MOUNT

Rack-Mount Modular Battery

A floor-mounted rack-mount battery repackages the proven LiFePO4 core into a flat horizontal module, so it slides into a camper van, a boat or an equipment rack and still delivers up to 16 kWh per unit with a smart touch display on the front.

Floor-Mounted Rack-Mount Battery Overview

This module lays the proven floor-standing core flat for vehicles and tight equipment bays, so it earns its place in any comparison of home energy storage for mobile builds. Because the body runs horizontally, four rubber feet hold it steady on any surface, while two front U-handles make it easy to pull, carry and service. As a result, this modular battery cabinet fits where a tall cabinet never could.

Technical Specifications

Parameter Value
Nominal Energy 5 kWh / 10 kWh / 16 kWh (customizable)
Nominal Capacity 100 Ah / 200 Ah / 314 Ah
Nominal Voltage 51.2 Vdc
Operating Voltage Range 44.8 – 57.6 Vdc
Cell Configuration 16S1P, LiFePO4 (Grade A: EVE / CATL / GOTION)
Max. Continuous Charge Current 50 A (5 kWh) / 100 A (10 kWh) / 150 A (16 kWh)
Max. Continuous Discharge Current 100 A (5 kWh) / 200 A (10 kWh) / 300 A (16 kWh)
Cycle Life ≥ 6,000 (5 kWh) / ≥ 8,000 (10 & 16 kWh) @ 25°C
Communication CAN / RS485 / RS232 (parallel link, PCS comms, dry contact)
Display LCD + SOC / status indicators
Protection IP54 (optional)
Cooling Natural air cooling
Parallel Expansion Up to 64 units
Certifications UL9540 & UL1973
Warranty > 5 years

In practice, these figures describe a standard floor-mounted rack-mount battery, so the current rating, the display and the enclosure can all be re-specified for your build.

Frequently Asked Questions

What is the rack-mount format for?

It is built to standard rack dimensions so it can be installed in an equipment rack or cabinet, including mobile and vehicle installations, while still delivering up to 16 kWh per unit.

Does a rack format reduce capacity?

No. Capacity per unit is the same 5, 10 or 16 kWh as the other models, on the same 51.2 Vdc platform.

What communication interfaces does it have?

CAN, RS485 and RS232, including a parallel link, PCS communications and a dry contact.

How is it protected?

IP54 ingress protection is available as an option, and the enclosure is cooled by natural air convection.

What is the cycle life?

At least 8,000 cycles at 25 °C for the 10 kWh and 16 kWh configurations, and at least 6,000 cycles for 5 kWh.

Questions to Put to a Floor-Mounted Battery Supplier

Before you place an order with a floor-mounted battery supplier, three answers are worth having in writing: the continuous discharge current at your planned ambient temperature, the communication protocol the unit speaks to your inverter, and the clearance the manufacturer requires around a flat-mounted module in an enclosed bay. If a supplier cannot answer these three with figures, treat the specification sheet as marketing rather than as a deliverable.

Why Choose a Floor-Mounted Rack-Mount Battery?

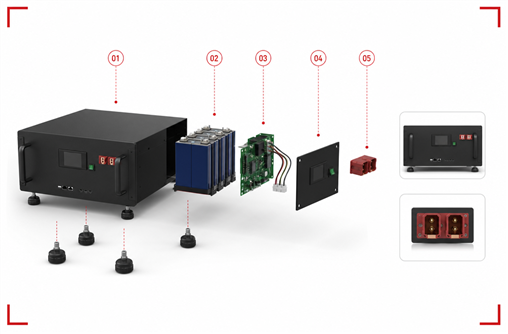

Ten design decisions define this module, and each one changes how the floor-mounted rack-mount battery behaves in a vehicle or a rack. If you already know our floor-standing cabinets, the difference lies in how flat and how mobile the unit becomes.

  • Rack-mountable design — flat horizontal body with four rubber feet; fits standard equipment racks and van builds
  • Front U-handles — two metal pull handles for easy handling and rack insertion
  • Smart front panel — central LCD display, green power switch, USB and RJ45 ports, colored protected connectors
  • Grade A LiFePO4 cells — EVE / CATL / GOTION, 16S1P, 6,000–8,000 cycles @ 25°C
  • Smart BMS with 18-layer protection — full electrical and thermal protection, cell balancing, fault alarms, fire-safety monitoring
  • Up to 64 units in parallel — build the exact capacity you need
  • 99% inverter compatibility — works with virtually all hybrid inverter brands
  • UL9540 & UL1973 certified — IP54 (optional), natural air cooling
  • >5-year warranty

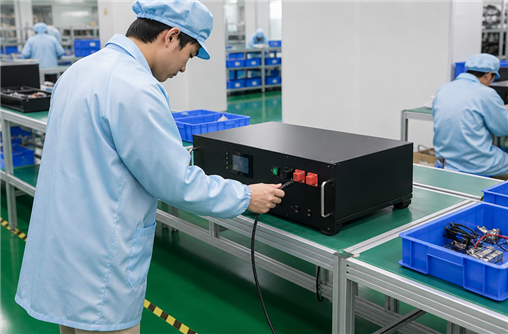

As an OEM/ODM partner, we configure the rack-mount module around your build rather than around a fixed catalogue. However, the process always starts from your target voltage, capacity and enclosure, so the mechanical drawing comes first. Therefore, tell us the rack width, the depth you can spare and the connector layout, and we build the floor-mounted rack-mount battery to match.

  • Capacity & voltage — full-gradient capacity customization, non-standard voltages supported
  • Size & outline — any size to fit your rack or cabinet; right-angle or arc-corner shapes
  • Current rating — continuous and peak current customized on demand
  • Mounting structures — slides, floor foot pads, stacking buckles or lifting lugs
  • Heat dissipation — side cooling ribs, louver vents, top fan openings or rear vents
  • Materials — cold-rolled steel, 304 stainless steel or aluminum alloy
  • Surface treatment — brushed, anodizing or full-color powder coating
  • Branding — custom logos and front-panel layouts
Built to Your Specification

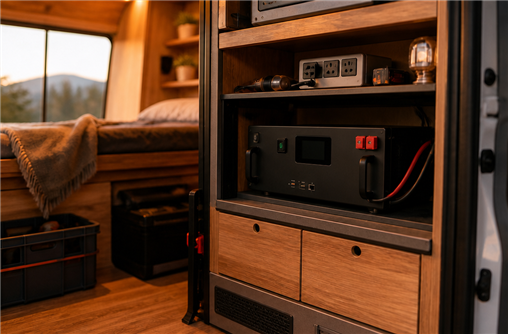

Where a Floor-Mounted Rack-Mount Battery Fits

Because the module is compact and self-contained, the same floor-mounted rack-mount battery covers several mobile and space-limited profiles. Typically, you will find it in five settings.

  • Camper vans, RVs and van-life builds
  • Boats and marine power systems
  • Equipment racks and server-style installations
  • Compact home energy storage
  • Mobile workstations and field offices
