Round Display Stackable Battery

Modular. Scalable. Smart. - Energy Storage That Grows with Your Needs.

10.24-30.72kWh     6,000 / 8,000 cycles by capacity

5-Year Warranty

STACKABLE / ROUND DISPLAY

 Round Display Stackable Battery

A round display stackable battery wraps the RUIDASIMAI stackable core in a compact white shell, with a circular display on the control unit, hidden inter-module connections and a stable four-foot base for tight spaces.

Round Display Stackable Battery Overview

A round display stackable battery is the compact option in the RUIDASIMAI stackable family, and it suits rooms where floor space is short. Four independent feet keep the stack stable and ventilated on any surface, while identical battery blocks build capacity one 5.12 kWh step at a time. Because the modules link through hidden connections, this round display stackable battery keeps a clean outer profile while it grows through 10.24, 15.36, 20.48, 25.6 and 30.72 kWh. The control unit at the top carries a central circular display for at-a-glance SOC, power and status. In short, this modular home battery suits apartments, corridors and utility corners.

Technical Specifications

Parameter Value
Nominal Energy 5 kWh / 10 kWh / 16 kWh (customizable)
Product Type Stackable Lithium Battery
Cell Chemistry LiFePO4
Module Configuration 16S1P
Nominal Capacity 100 Ah / 200 Ah / 314 Ah
Nominal Voltage 51.2 Vdc
Operating Voltage Range 44.8 – 57.6 Vdc
Max. Continuous Charge Current 50 A (5 kWh) / 100 A (10 kWh) / 150 A (16 kWh)
Max. Continuous Discharge Current 100 A (5 kWh) / 200 A (10 kWh) / 300 A (16 kWh)
Cycle Life ≥ 6,000 (5 kWh) / ≥ 8,000 (10 & 16 kWh) @ 25°C
Communication Interface CAN / RS485 / RS232
Display Panel LCD (circular display on control unit)
Ingress Protection IP54 (optional)
Cooling Type Natural air cooling
Parallel Expansion Up to 64 units
Certifications UL9540 & UL1973
Warranty > 5 years

In practice, these figures describe the standard round display stackable battery, so we can re-specify the display, current rating and enclosure for your market.

Stack Configurations

Modules Nominal Energy
2 modules 10.24 kWh
3 modules 15.36 kWh
4 modules 20.48 kWh
5 modules 25.6 kWh
6 modules 30.72 kWh

Above all, the module count decides runtime, so a modular home battery can start small and grow with the load.

Frequently Asked Questions

How does this model differ from the classic stackable battery?

The electrical platform is identical — the same 5 to 16 kWh capacity, the same module stepping and the same cell configuration. The difference is the control unit, which uses a circular LCD in place of the square one.

What capacity does each module add?

Each module adds 5.12 kWh. Two to six modules give 10.24 kWh to 30.72 kWh.

Is it the same width as the other stackable models?

The stack uses the same module footprint across the stackable family; only the control unit face and display change between models.

What communications does it support?

CAN, RS485 and RS232, allowing closed-loop reporting of battery state to the inverter.

How many units can be paralleled?

Up to 64 units.

Why Choose a Round Display Stackable Battery?

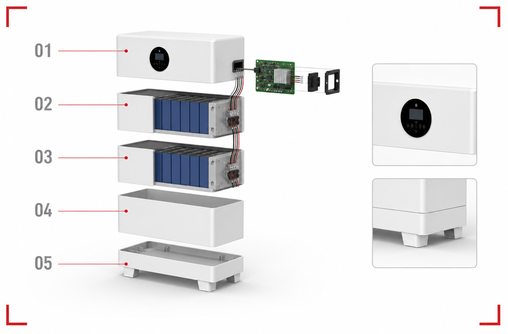

Ten design decisions shape this unit, and each one changes how the round display stackable battery behaves in a real home. As a stackable lithium battery platform, it also shares its core with the rest of the range while keeping a slimmer profile.

  • Compact stack profile — slim white modules with hidden inter-module connections for a clean look
  • Circular display on control unit — round LED/LCD panel shows SOC, power and status clearly
  • Stable four-foot base — independent feet for stability and under-floor ventilation on uneven surfaces
  • From 10.24 to 30.72 kWh — stack 2–6 modules (5.12 kWh each) to match your household load
  • Grade A LiFePO4 cells — EVE / CATL / GOTION cells in a 16S1P configuration, 6,000–8,000 cycles @ 25°C
  • Smart BMS with 18-layer protection — over/under voltage, charge/discharge overcurrent, short circuit, low-temp charge / high-temp discharge protection, cell balancing, temperature monitoring and fault alarms
  • Up to 64 units in parallel — multiple stacks for whole-home or site capacity
  • 99% inverter compatibility — pairs with virtually all hybrid inverter brands
  • UL9540 & UL1973 certified — IP54 (optional), natural air cooling
  • >5-year warranty with full-cycle service

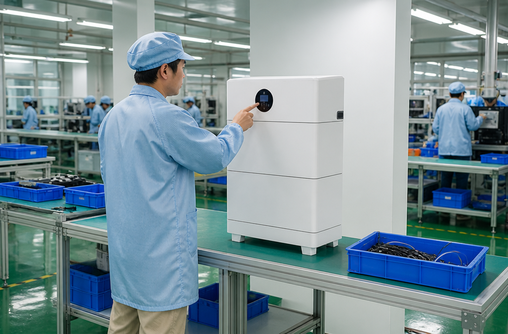

The ROUND DISPLAY series is fully configurable at the factory. However, we work primarily as an OEM/ODM partner, so the specification starts with your market rather than with our catalogue. Therefore, tell us the target voltage, capacity and enclosure, and we build the round display stackable battery around them.

  • Capacity & voltage — full-gradient capacity customization, non-standard voltages supported
  • Size & outline — any size to match your voltage/capacity; right-angle or arc-corner shapes; single/multi-layer stacking
  • Current rating — continuous and peak current customized on demand
  • Mounting structures — wall brackets, floor foot pads, lifting lugs, stacking buckles or slides
  • Heat dissipation — vertical side cooling ribs, louver vents, top fan openings or rear ventilation slots
  • Materials — cold-rolled steel, 304 stainless steel or aluminum alloy
  • Surface treatment — brushed, anodizing or full-color powder coating (custom RAL colors available)
  • Branding — custom logos, display interfaces and module designs
Built to Your Specification

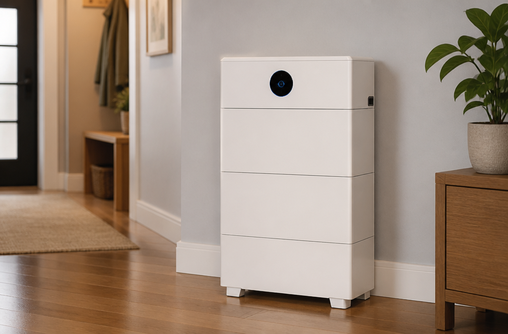

Where a Round Display Stackable Battery Fits

Because the stack stays compact, the same round display stackable battery covers several household profiles. Typically, it is installed in five settings.

  • Apartments and compact homes, where floor space is the first constraint
  • Corridors, cloakrooms and utility corners
  • Home solar self-consumption
  • Small shops and offices
  • Backup power for essential circuits
