Smart Stackable Battery

Modular. Scalable. Smart. - Energy Storage That Grows with Your Needs.

10.24-30.72kWh     6,000 / 8,000 cycles by capacity

5-Year Warranty

STACKABLE / SMART

Smart Stackable Battery

A smart stackable battery built from white modular blocks, topped by a black smart control unit with a clear rectangular display and a master breaker — a LiFePO4 system that grows from 10.24 to 30.72 kWh, module by module.

Smart Stackable Battery Overview

A smart stackable battery is the easiest way to size storage to a real household. The SMART series uses identical white battery blocks, so you add capacity one 5.12 kWh step at a time — 10.24, 15.36, 20.48, 25.6 or 30.72 kWh — without replacing the system you already own. On top of the stack, a black control unit manages the whole installation. Because it carries a rectangular display and a master breaker, that single unit lets you read state of charge, watch power flow and isolate the battery safely. As a result, this smart stackable battery suits households that want a modular, expandable home battery with clean, centralized control.

Technical Specifications

Parameter Value
Nominal Energy 5 kWh / 10 kWh / 16 kWh (customizable)
Product Type Stackable Lithium Battery
Cell Chemistry LiFePO4
Module Configuration 16S1P
Nominal Capacity 100 Ah / 200 Ah / 314 Ah
Nominal Voltage 51.2 Vdc
Operating Voltage Range 44.8 – 57.6 Vdc
Max. Continuous Charge Current 50 A (5 kWh) / 100 A (10 kWh) / 150 A (16 kWh)
Max. Continuous Discharge Current 100 A (5 kWh) / 200 A (10 kWh) / 300 A (16 kWh)
Cycle Life ≥ 6,000 (5 kWh) / ≥ 8,000 (10 & 16 kWh) @ 25°C
Communication Interface CAN / RS485 / RS232
Display Panel LCD (rectangular display on control unit)
Ingress Protection IP54 (optional)
Cooling Type Natural air cooling
Parallel Expansion Up to 64 units
Certifications UL9540 & UL1973
Warranty > 5 years

In practice, these figures describe a standard smart stackable battery, so the display, current rating and enclosure can all be re-specified for your market.

Stack Configurations

Modules Nominal Energy
2 modules 10.24 kWh
3 modules 15.36 kWh
4 modules 20.48 kWh
5 modules 25.6 kWh
6 modules 30.72 kWh

Above all, the module count decides the runtime, so a modular home battery can start small and grow with the load.

Frequently Asked Questions

What makes the smart stackable model different?

It uses the same stackable platform and the same 5 to 16 kWh capacity range, with a rectangular LCD on the control unit.

What cycle life is specified?

At least 8,000 cycles at 25 °C for the 10 kWh and 16 kWh configurations, and at least 6,000 cycles for the 5 kWh configuration.

Can it work with my existing inverter?

The battery communicates over CAN, RS485 and RS232, which is the interface the large majority of hybrid inverters use. Compatibility for a specific inverter model should be confirmed before ordering.

Does it need active cooling?

No. The enclosure is cooled by natural air convection, so there is no fan to service or filter to replace.

What warranty applies?

More than five years.

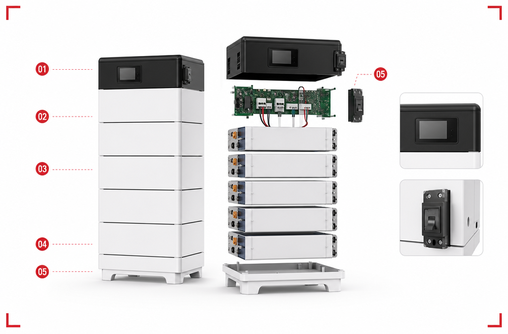

Why Choose a Smart Stackable Battery?

Ten design decisions define this unit, and each one changes how the smart stackable battery behaves in a real home. If you already know the classic floor-standing format, the difference lies in how the system grows and how you control it.

  • Smart black control unit — black top module with rectangular display and master breaker for central control
  • Clear rectangular display — SOC, power and status readout on the control unit front
  • Modular white blocks — identical battery modules stack with blind connectors; no visible wiring
  • From 10.24 to 30.72 kWh — stack 2–6 modules (5.12 kWh each) to match your household load
  • Grade A LiFePO4 cells — EVE / CATL / GOTION cells in a 16S1P configuration, 6,000–8,000 cycles @ 25°C
  • Smart BMS with 18-layer protection — over/under voltage, charge/discharge overcurrent, short circuit, low-temp charge / high-temp discharge protection, cell balancing, temperature monitoring and fault alarms
  • Up to 64 units in parallel — multiple stacks for whole-home or site capacity
  • 99% inverter compatibility — pairs with virtually all hybrid inverter brands
  • UL9540 & UL1973 certified — IP54 (optional), natural air cooling
  • >5-year warranty with full-cycle service

The SMART series is fully configurable at the factory. However, we work primarily as an OEM/ODM partner, so the specification starts with your market rather than with our catalogue. Therefore, tell us the target voltage, capacity and enclosure, and we build the smart stackable battery around them.

  • Capacity and voltage — full-gradient capacity customization, with non-standard voltages supported
  • Size and outline — any size to match your voltage and capacity, including right-angle or arc-corner shapes and single or multi-layer stacking
  • Current rating — continuous and peak current customized on demand
  • Mounting structures — wall brackets, floor foot pads, lifting lugs, stacking buckles or slides
  • Heat dissipation — vertical side cooling ribs, louver vents, top fan openings or rear ventilation slots
  • Materials — cold-rolled steel, 304 stainless steel or aluminum alloy
  • Surface treatment — brushing, anodizing or full-color powder coating, with custom RAL colors available
  • Branding — custom logos, display interfaces and control-unit layouts
Built to Your Specification

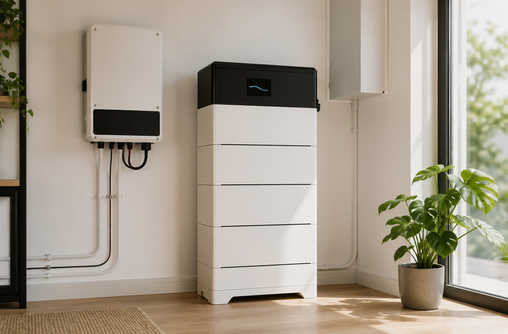

Where a Smart Stackable Battery Fits

Because the stack is modular, the same smart stackable battery covers several household profiles. Typically, it is installed in five settings.

  • Home solar self-consumption and backup, especially where daytime generation is already stored
  • Expandable systems for growing energy needs
  • Garages, basements and utility rooms
  • Home offices and studios
  • Grid-unstable rural households
