Silver Smart Wall Battery

Reliable. Compact. Smart. - Energy Storage for Modern Homes.

5kWh · 10kWh · 16kWh    6,000 / 8,000 cycles by capacity

5-Year Warranty

WALL-MOUNTED / SMART DISPLAY

Silver Smart Wall Battery

A slim silver cabinet with a large colour display on the front — the wall-mounted LiFePO4 battery that looks like part of your smart home. From 5 to 16 kWh, with full CAN / RS485 / RS232 communication and up to 64 units in parallel.

Smart Wall-Mounted Battery Overview

A smart wall-mounted battery is the wall cabinet you stop noticing, because a silver-grey shell with rounded corners reads as furniture rather than as equipment. The large colour LCD occupies the centre of the front panel, so graphical power and state-of-charge readouts are visible from across the room. A rear bracket holds the cabinet flush to the wall, whereas the full CAN, RS485 and RS232 suite links it to the inverter and to the rest of the installation. Inside, the unit carries the same 51.2 V LiFePO4 core and the same 18-layer BMS protection used across the RUIDASIMAI range. As a result, this wall-mounted lithium battery suits modern interiors where a plain white box would stand out.

Technical Specifications

Parameter Value
Nominal Energy 5 kWh / 10 kWh / 16 kWh (customizable)
Product Type Wall-Mounted Lithium Battery
Cell Chemistry LiFePO4
Module Configuration 16S1P
Nominal Capacity 100 Ah / 200 Ah / 314 Ah
Nominal Voltage 51.2 Vdc
Operating Voltage Range 44.8 – 57.6 Vdc
Max. Continuous Charge Current 50 A (5 kWh) / 100 A (10 kWh) / 150 A (16 kWh)
Max. Continuous Discharge Current 100 A (5 kWh) / 200 A (10 kWh) / 300 A (16 kWh)
Cycle Life ≥ 6,000 (5 kWh) / ≥ 8,000 (10 & 16 kWh) @ 25°C
Communication Interface CAN / RS485 / RS232
Display Panel LCD (large colour display on front panel)
Ingress Protection IP54 (optional)
Cooling Type Natural air cooling
Parallel Expansion Up to 64 units
Certifications UL9540 & UL1973
Warranty > 5 years

In practice, these figures describe a standard wall-mounted lithium battery, so we can re-specify the display, current rating and enclosure for your market.

Frequently Asked Questions

What display does this model use?

A large colour LCD on the front panel — the most legible display in the range, intended for installations where the battery sits in a visible position.

Does the larger display change the electrical specification?

No. It shares the same 51.2 Vdc LiFePO4 platform, the same 5 to 16 kWh capacity range and the same 18-layer battery management system as the rest of the range.

What certifications does it hold?

UL 9540 and UL 1973.

Can it be expanded later?

Yes — up to 64 units can be paralleled.

What does it communicate over?

CAN, RS485 and RS232, giving a closed-loop link to the inverter.

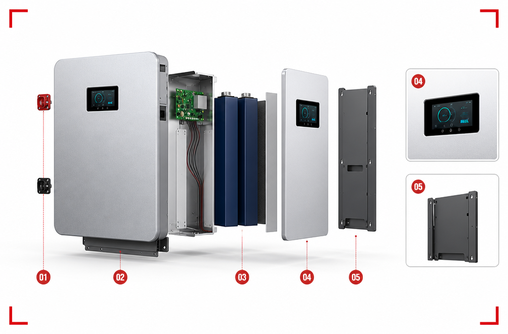

Why Choose a Smart Wall-Mounted Battery?

Ten design decisions define this unit, and each one changes how a smart wall-mounted battery behaves in a real home. If you are comparing finishes, the silver shell and the front colour display are the two features that separate it from the white classic cabinet.

  • Premium silver finish — brushed metallic front panel with rounded corners, a refined look for modern homes
  • Large colour display — central LCD with graphical power/SOC readout for at-a-glance monitoring
  • Flush wall mount — rear bracket for a clean, space-saving installation
  • Full communication suite — CAN / RS485 / RS232 for inverter and parallel communication
  • Grade A LiFePO4 cells — EVE / CATL / GOTION cells in a 16S1P configuration, 6,000–8,000 cycles @ 25°C
  • Smart BMS with 18-layer protection — over/under voltage, charge/discharge overcurrent, short circuit, low-temp charge / high-temp discharge protection, cell balancing, temperature monitoring and fault alarms
  • Up to 64 units in parallel — scale from 5 kWh to whole-home capacity
  • 99% inverter compatibility — pairs with virtually all hybrid inverter brands
  • UL9540 & UL1973 certified — IP54 (optional), natural air cooling
  • >5-year warranty with full-cycle service

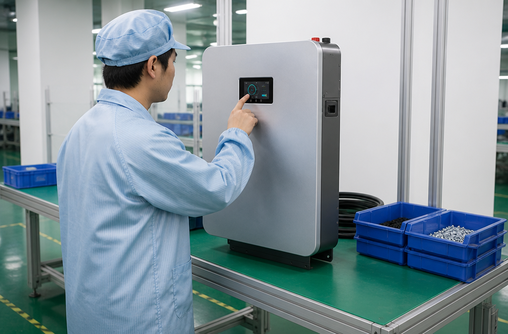

The SMART DISPLAY series is fully configurable at the factory. However, we work primarily as an OEM/ODM partner, so the specification starts with your market rather than with our catalogue. Therefore, tell us the target voltage, capacity and enclosure finish, and we build the smart wall-mounted battery around them.

  • Capacity & voltage — full-gradient capacity customization, non-standard voltages supported
  • Size & outline — any size to match your voltage/capacity; right-angle or arc-corner shapes; single/multi-layer stacking
  • Current rating — continuous and peak current customized on demand
  • Mounting structures — wall brackets, floor foot pads, lifting lugs, stacking buckles or slides
  • Heat dissipation — vertical side cooling ribs, louver vents, top fan openings or rear ventilation slots
  • Materials — cold-rolled steel, 304 stainless steel or aluminum alloy
  • Surface treatment — brushed, anodizing or full-color powder coating (custom RAL colors available)
  • Branding — custom logos, display interfaces and panel layouts
Built to Your Specification

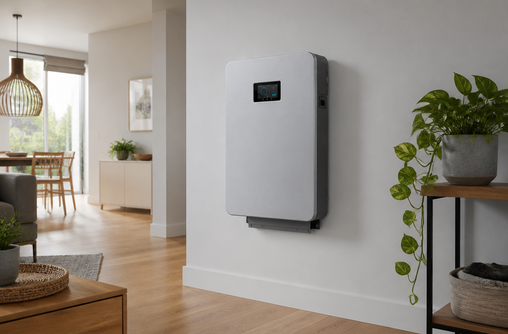

Where a Smart Wall-Mounted Battery Fits

Because the cabinet stays as slim as furniture, one smart wall-mounted battery covers several household profiles. Typically, you will find it in five settings.

  • Modern and smart-home interiors
  • Home offices and studios
  • Apartments with premium finishes
  • Solar self-consumption and backup
  • Homes pairing wall storage with floor storage
