What happens if the battery overheats?

In a well-designed system, home battery overheating never gets a chance to become a visible problem. The battery management system watches cell temperature continuously and acts on it, The sequence of events during overheating is therefore a set of deliberate protections, not a single failure point.

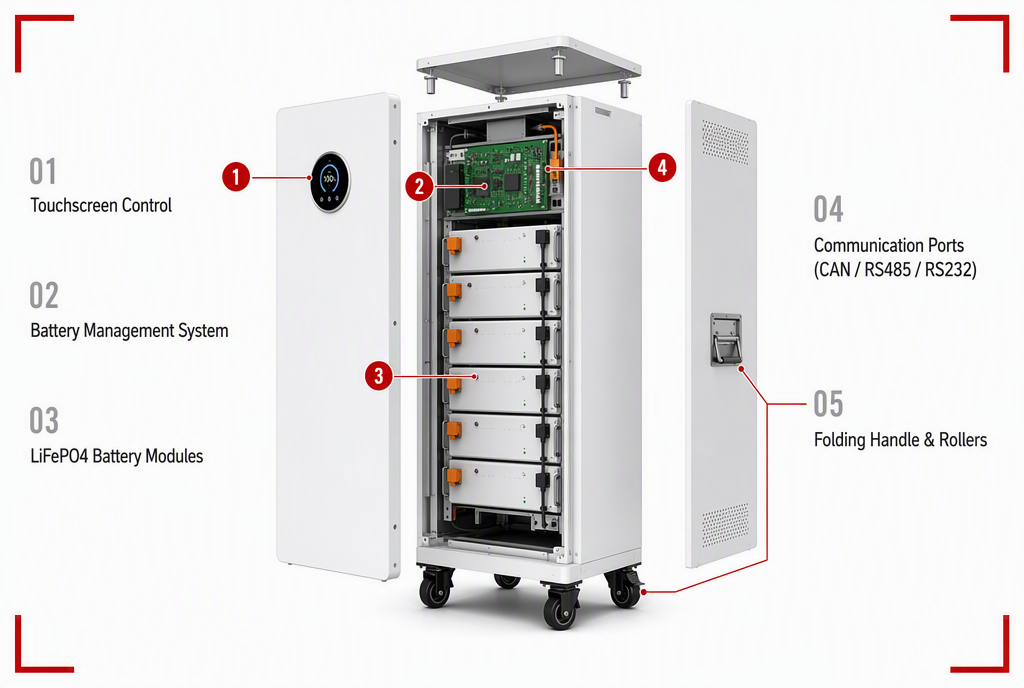

Home battery overheating protection: temperature monitoring inside a floor-mounted LiFePO4 cabinet

What the BMS Does During Home Battery Overheating

Home battery overheating protection starts with temperature monitoring, which runs continuously across the cells. If the pack approaches its upper limit, high-temperature discharge protection reduces or stops discharge. It does not let the cells keep working. On the charging side, low-temperature charge protection prevents charging below freezing, which would otherwise plate metallic lithium on the anode.

The protection set also includes over and under voltage limits, charge and discharge overcurrent limits and short circuit protection. It adds cell balancing, plus fire-safety monitoring with fault alarms. Because these layers operate independently, a single sensor fault does not remove the other protections. These protections are part of the broader safety case covered in our LiFePO4 home battery safety guide.

Why These Units Use Natural Air Cooling

Our residential units use natural air cooling rather than forced ventilation. There are no fans to fail, no filters to block and no moving parts to service. That is a deliberate part of the battery thermal protection. An optional IP54 rating is available for enclosure protection. It keeps the electronics protected in a garage or utility room without needing a filtered airflow path.

The trade-off is that with no fan-based overheating protection, ambient temperature matters more. A naturally cooled cabinet relies on the air around it. It needs clearance, so do not box it in or place it next to another heat source.

Temperature and Cycle Life

Heat is the single biggest influence on how long a battery lasts. Battery thermal protection therefore matters more than peak ratings. The published cycle-life ratings for our units — 6,000 cycles or more for 5 kWh, and 8,000 cycles or more for 10 kWh and 16 kWh — come from testing at 25°C. Operating consistently above that temperature shortens service life even when the overheating protection never triggers.

That is why the practical advice is boring but effective: keep the cabinet out of direct sun, leave the specified clearance, and let the air move. Full technical specifications are on the floor-mounted and wall-mounted product pages. The safety standards behind this battery thermal protection come from UL Solutions. If your install site runs hot, talk to our engineers before you mount anything. For the cold-weather counterpart to this protection set, see our guide to home battery in winter.

What to Check When a Battery Overheats

If a cabinet runs hot, the cause is usually outside the pack. Work through the checks in this order before treating it as a battery fault, because the first three are things you can verify yourself.

  • Read the ambient temperature. Natural air cooling depends on the air around the unit, so measure the room temperature where the cabinet stands, not the temperature the installation manual assumed.
  • Check the clearance. Confirm the specified gaps are still free. A cabinet that has been boxed in by shelving, a new appliance or stored items cannot shed heat.
  • Look for a second heat source. Inverters, water heaters, drying laundry and direct sun through a window all raise the local temperature around an otherwise healthy battery.
  • Check whether the protection layer acted. A home battery that reduced or stopped output when hot behaved correctly; the event still needs investigating, but the battery was not the fault.
  • Record and escalate. If the cabinet is hot with ambient temperature and clearance both normal, send the readings, the installation photographs and any fault alarm to the supplier rather than waiting for a repeat.
